Equipment List
We are constantly re-investing in electronics manufacturing technology. We have a full range of modern PCBA production equipment at our design and manufacturing center near Rochester, NY.
Surface Mount Technology (SMT) Assembly
TWO (2) SMT assembly lines rated speed 43,000 chips per hour, each with:
- Automatic board feeder
- Speedline SP710AVI stencil printer
- Mycronic MY300HX pick-and-place machine
- Mycronic MY300EX pick-and-place machine
- BTU International Pyramax 98 reflow oven
- Nordson YESTech FX-940 Ultra 3D automated optical inspection (AOI) system
High Speed SMT assembly line rated speed 88,000 chips per hour with:
- Automatic board feeder
- Mycronic MYPro S30 stencil printer
- Mycronic A40DX-13 pick-and-place machine
- Mycronic A40DX-13 pick-and-place machine
- BTU International Pyramax 100 reflow oven
- Omron VT-S1040 3D automated optical inspection (AOI) system
Other SMT Assembly Equipment
- Xeltek SuperBot 5E automated robotic IC programmer
- OKI (Metcal) BGA rework station
- Hylax Technology 20-Watt UV laser for depaneling
- Gensonic GEN3 stencil cleaner
- Dry box storage for moisture sensitive devices (MSDs)
Through-Hole and Mixed-Technology PCB Assembly Equipment
- Universal Instruments Radial 88HT automated insertion machine
- 30-foot adjustable extruded aluminum board handling rails with custom LED task lighting
- CAM software with paperless assembly instructions at each station
Selective Soldering and Other Soldering
- Kurtz Ersa Versaflow 3/45, 3 pot selective soldering system
- Apollo Seiko J-CAT Stellar robotic soldering system
- Vitronics Soltec Delta wave solder (lead-free)
- DataPAQ Q18 solder reflow thermal profiling system (for wave and reflow)
- Hot-bar reflow solder system
- Metcal soldering systems
Board Cleaning and Conformal Coating
- Austin American Technology HydroJet inline chemical wash cleaning system
- SCS Ionograph BT Series
- PVA Delta 6 programmable robotic conformal coating system
- DYMAX UVCS light curing conveyor
Inspection and Test
- YESTech FX-940 Ultra 3D automated optical inspection (AOI) systems
- Glenbrook Tech jewel box 70-T X-ray
- Fischerscope X-ray fluorescence spectrometer
- SMT Tools side-looking microscope for BGA inspection
- Lynx vision systems
- CableEye automated cable tester
Wire Harness and Custom Cable Assembly
- Schleuniger wire cutter/stripper
- Panduit CP Series ferule crimp press
- Kingsing KS Series heavy duty rotary cable stripper
- Amp K presses
- KL-CX-01-2-09-1 Injection Molder
- Mold-Man injection molding machine
- Gamma Mark III Plus heat shrink label printer
- CableEye automated cable tester
- Various hand tools
Custom Magnetics and Coil Winding
- Adams-Maxwell horizontal winders
- Jovil JV75 hook winders
- LCR meters
- Various hand tools
Other
- Hylax Technology 20-Watt UV laser
- Epilog Fusion M2 40 75-Watt CO2 laser
- Fisnar F4200N dispensing robots for SMT component underfill and other tasks
- Branson and Dukane ultrasonic welders
- Haas TM-2P with 20 station tool changer
- Vacuum thermal former to create custom-formed ESD packaging for your product
- Formlabs 3D printer
Two identical SMT production lines feature the latest MY300 pick-and-place machines from Mycronic.
New Production Introduction (NPI) line has part feeders, pick-and-place heads, magazines and programming in common with the production lines.
Hylax 20-Watt UV laser enables precision depaneling of printed circuit board assemblies with no mechanical stress and tight tolerance on board dimensions.
YESTech YTV B3 dual automated optical inspection (AOI) systems identify defects such as missing, wrong or misaligned components; bent leads and defective solder connections. Paperless defect tracking streamlines rework and enables continuous improvement of manufacturing processes.

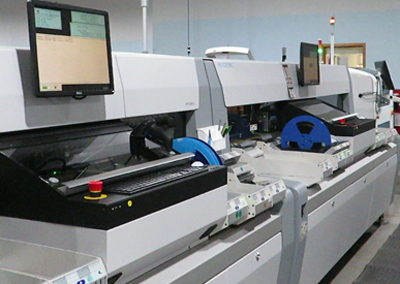

Mycronic MY300HX SMT pick-and-place machines (2)
Rated at 45,000 parts per hour, the latest pick-and-place machine from Mycronic handles parts as small as SMT 01005.
Mycronic MY300EX SMT pick-and-place machines (2)
This pick-and-place robot handles a wide variety of parts including QFP, BGA, CSP, flip chip and odd-shape packages at rated speeds up to 10,000 parts per hour.
Mycronic MY9e SMT Pick-and-Place Machines (2)
These fast and flexible SMT pick-and-place machines are at the heart of our New Product Introduction (NPI) and fast-turn SMT assembly line.
Speedline Technologies SP710 AVI Stencil Printer
Featuring an imaging system for repeatable results, this printer has high print accuracy and fast set-up time for high-mix, high-speed production of fine-pitch SMT assemblies.
Universal Instruments Radial 88HT Insertion
For through-hole and mixed-technology PCBAs. The 88HT handles parts with 2-3 leads and three standard lead spacings. It clinches the leads upon insertion, for high quality solder joints and easier in-process board handling.

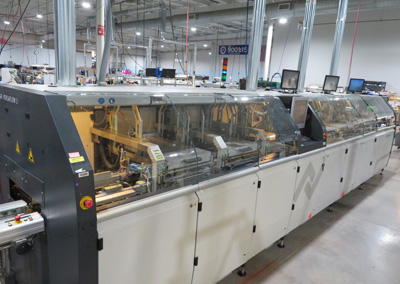

Ersa Versaflow 3 Selective Solder System
This high-end system supports high-volume mixed-technology PCB assembly. It features multiple pre-heating stages, three solder fountains, and a pure nitrogen environment for high quality solder joints.

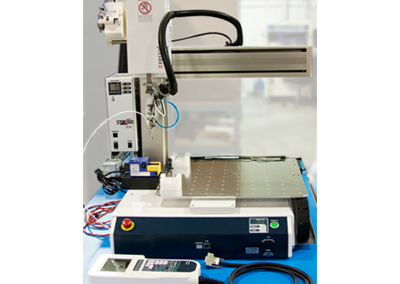

Apollo Seiko J-CAT Stellar Robotic Soldering
Robotic soldering gives us a controlled, repeatable process with quick change-over and ability to run multiple jobs simultaneously.
Vitronics Soltec Delta Lead-Free Wave Solder
Lead-free wave solder with computer control allows us to store and quickly set up the best process for each board.
Pyramax 98 Lead-Free Solder Reflow
Pyramax 98 reflow oven supports the high-speed, high-mix SMT line.
Hylax HT200 UV Laser
Using this 20-Watt UV laser for precision depaneling of PCB assemblies, we can hold tighter tolerances on board dimensions and place components closer to the edges.
Epilog Fusion CO2 Laser
We use this 75-Watt CO2 laser to cut and engrave components used in customer PCB assemblies, create custom packaging, and etch or engrave markings into parts and assemblies.
YESTech YTV B3 Dual AOI
We use AOI (Automated Optical Inspection) to identify defects such as missing, wrong or misaligned components; bent leads and defective solder connections. Electronic defect tracking supports process control and continuous improvement.

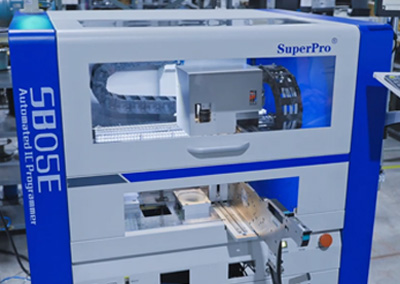

Xeltek Robotic IC Programmer
Automatic IC programming provides high throughput and lower cost for custom-programmed microprocessors and memory chips; enables same-day software updates for your boards.

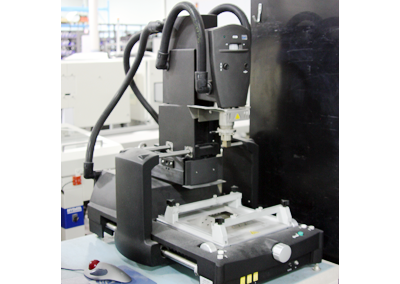

OKI (Metcal) BGA and SMT Rework Station
OKI (Metcal) BGA and SMT rework station allows us to repair or upgrade your existing boards – and extend your product lifecycle.
Glenbrook Technologies 70 T X-Ray
Jewel box 70 T X-Ray system supports BGA and multi-layer printed circuit board inspection.
PVA Delta 6 Robotic Conformal Coating System
Conformal coating seals and protects PCB assemblies.The robotic system ensures high quality in a controlled, repeatable process.
DYMAX UVCS Light Curing Conveyor
This system speeds throughput of PCB assemblies with UV-curable conformal coating and adhesives.
Fisnar Dispensing Robot
Automated dispensing of gel conformal coating, adhesives, and SMT component underfill improves process control, reduces waste and labor costs, and delivers higher throughput.
American Austin Technology HydroJet In-Line Cleaning System
This board washer enables thorough cleaning of solder flux from printed circuit boards, even under BGAs and around fine-pitch components.

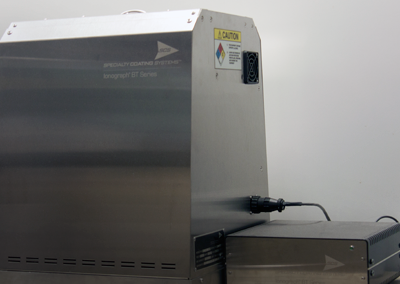

SCS Ionograph BT Series
The ionic contamination testing system provides enhanced control of the board cleaning process. All test data is stored electronically, providing a complete production and product history.
Formlabs 3D Printer
We use 3D printing to produce detailed components from materials including high-temperature plastics. We print mold inserts for injection molding, in-house prototype enclosures, and a variety of tools and fixtures.

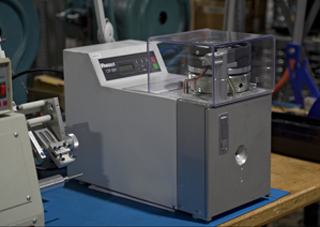

Panduit Ferule Crimp Press
This machine automates wire stripping, ferrule placement, and ferrule crimping with an average cycle time of less than 1.5 seconds.
Kingsing Rotary Cable Stripper
Supports custom cable assembly with co-axial, tri-axial, and other multi-layered cable stripping in up to nine layers.

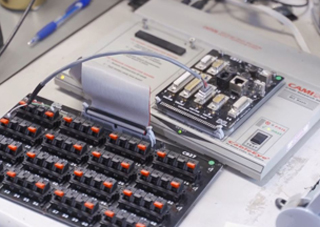

CableEye Continuity Tester
This PC-based test system checks continuity and detects opens, shorts, mis-wires and intermittent connections in a wire harness or cable assembly.
Schleuniger High-Throughput Wire Cutter/Stripper
Programmable for fast change-over in production of cable assemblies and wire harness assemblies.
KL-CX-01-2-09-1 Injection Molder
We use low-temperature, low-pressure injection molding to over-mold elastomers onto cable assemblies for strong, flexible strain relief.
Mold-Man 1050 Injection Molder
With both molding machines, aluminum or 3D-printed mold inserts support economical over-molding at any volume.
Fischerscope X-Ray Fluorescence Spectrometer
We use our X-ray fluorescence spectrometer to ensure RoHS compliance of incoming materials and for in-process quality control.
Branson and Dukane Ultrasonic Welders
Ultrasonic welders seamlessly join plastic parts and are ideal for sealing cases and housings.
Thermal-Former for Custom ESD Packaging
We create ESD-protective packaging custom-formed in-house to protect your product, reduce waste and simplify your handling and inventory tasks.
